SA-7181系列银浆料
SA-7181 SILVER RESISTIVE PASTE

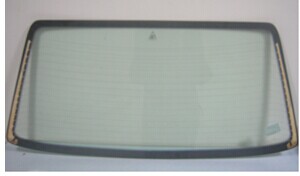

——汽车玻璃加热除霜/ for Automobile glass defrosting
产品介绍(Introduction)
SA-7181系列银浆料是汽车玻璃加热除霜的专用浆料,不含铅、镉、汞等有毒金属,满足环保的要求。具有印刷性能好、附着强度高、加热线长期工作稳定、电阻率根据加热功率可调等特点。
SA-7181 silver resistive paste series are used for automobile glass defrosting, with features of especially strong adhesion, long term stability, and variation of resistivity of silver lines as needed. They are lead free and RoHS compatible.
技术参数(Specifications)
产品型号(Type) |
SA-7181(A、B、C) |
固含量(Solid content)/% |
70-85 |
粘度(Viscosity)/Pa.s |
40-120 |
粒径(Particle size)/μm |
≤15 |
方阻(Resistance/□)/mΩ |
3-13 |
附着力(Adhesion)/N |
≥80 |
使用方法(Process)
丝网(Screen printing):250目(250 mesh)
烘干温度(Drying): 150℃/15min
烧结工艺(Firing conditions):
温度(Temperature):650-750℃
处理时间(Annealing time):8-10min
烧结周期(cycle time): 40 minutes door to door
